DIABLO 96 FSW
FREESTYLE WAVE
Introducing the Diablo series of wave boards!
225cm x 61cm x 96 liters
Target – Very light-wind onshore wave / regular wind bump & jump FSW.
R&D Result
Designed as a dedicated light onshore/freestyle wave board capable of performing in a wide range of conditions.
Features &
Benefits
Benefits
• Epoxy Gel Coat finish – For the extra rugged needs of the modern wave arena. Tough outside shell resistant to scratches and abuse from rocks or rough launch sites.
• Hull Design – Planform straight vee bottom with a light double concave throughout. The best combination for an easy and consistent ride in bump & jump to light onshore wave conditions. Sufficient thickness on the back foot and nose area to assist planing and staying upwind.
• Outline – Full curves and width in the nose and tail for very early planing and good overall stability.
• Invictus slalom scoop-rocker line for maximum speed, control and acceleration. Works in small waves too!
• Construction – Built with the very highly regarded Kinetic ‘strong wave layup’ gives the Diablo series the best compromise in terms of light weight, strength and durability. 3mm deck / 5mm bottom full wrap pvc premium sandwich construction with double pvc sandwich in the most stressed areas for excellent compression durability.

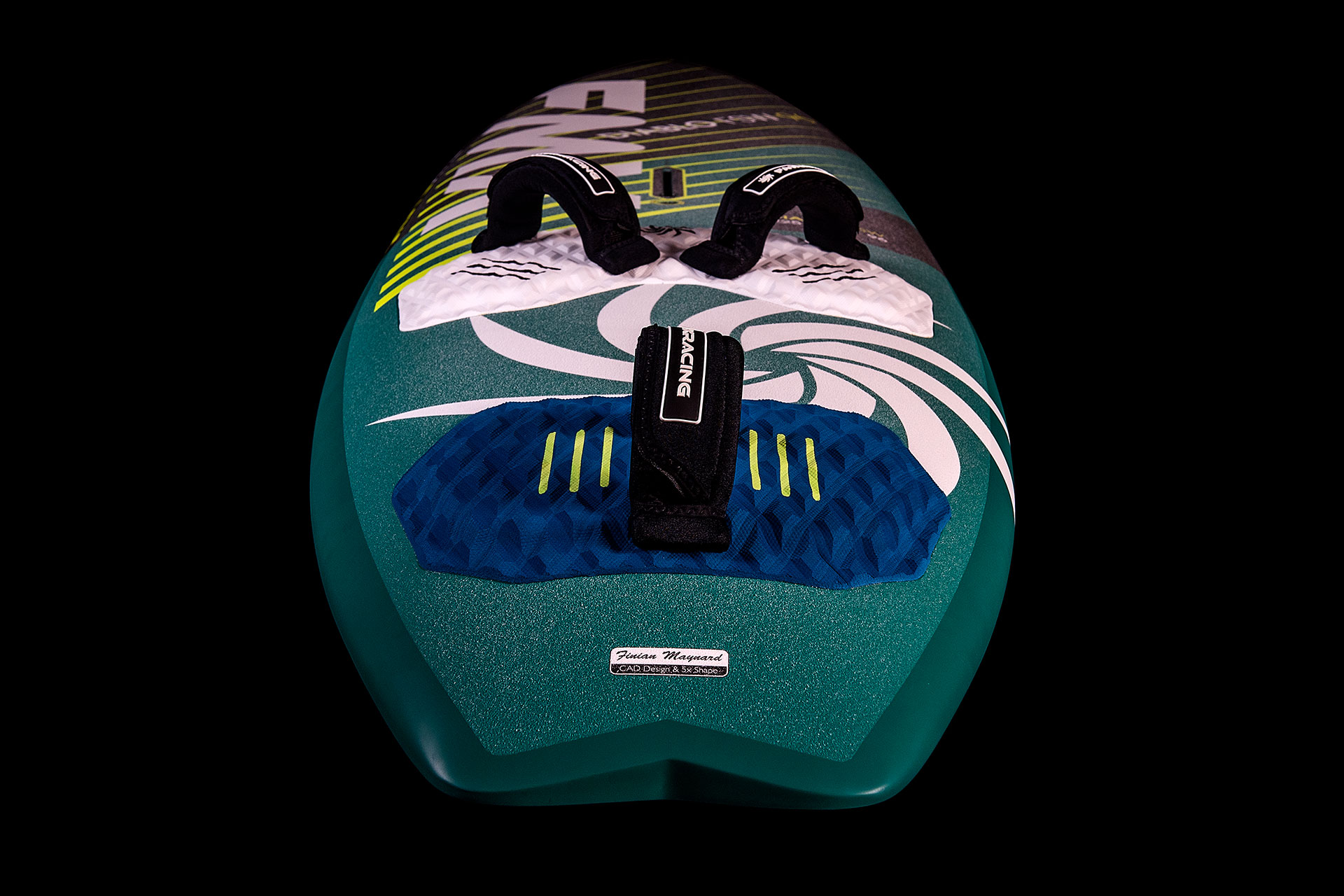

• Dual density footpads with a 4mm top layer with a normal pad hardness coupled with a softer 8mm pad underneath for comfortable shock absorption.

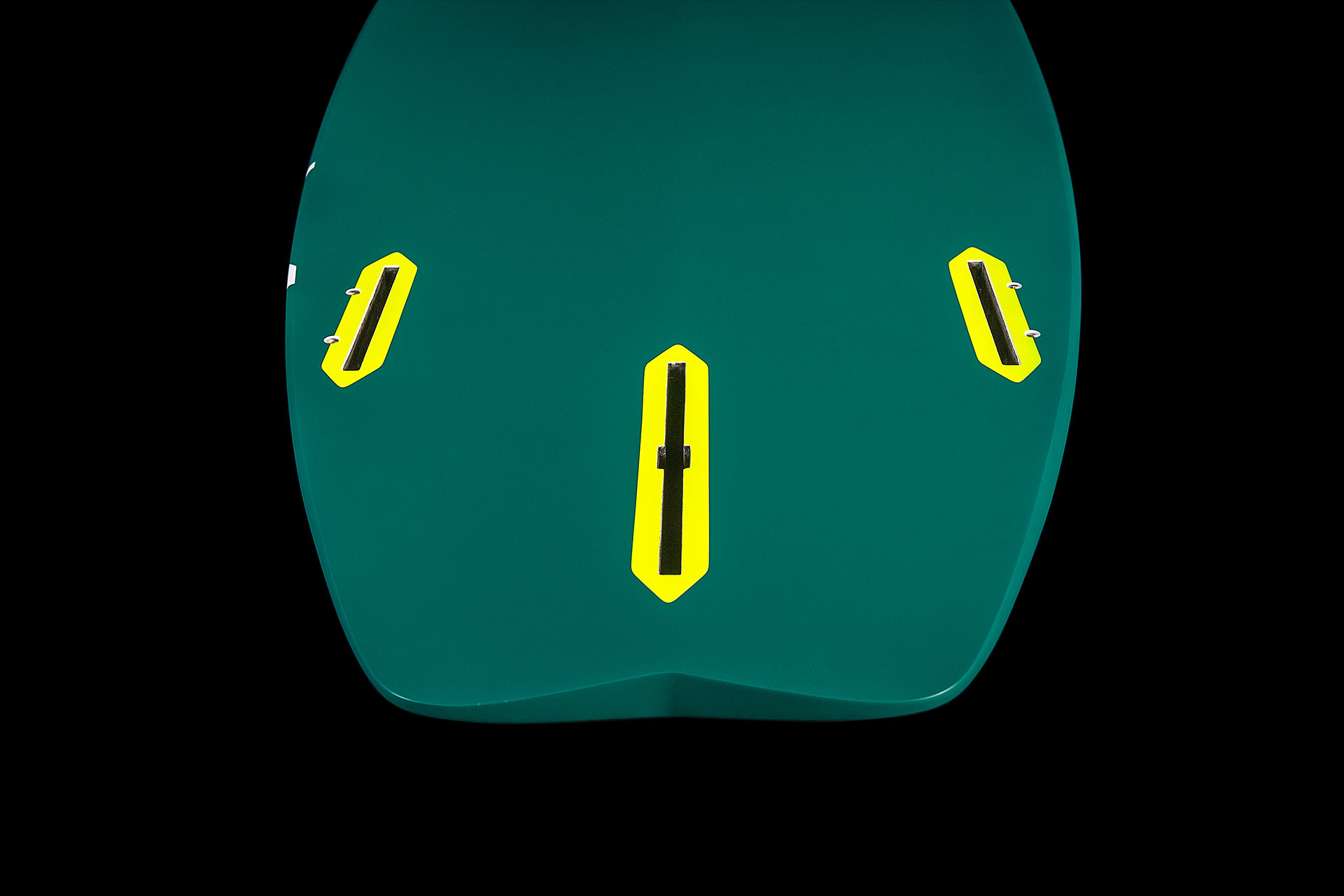

• Fin boxes – 2 x 13cm slot fin box thruster fins combined with an 8” US Box center fin configuration. Industry standard FSW setup.
Summary
The Diablo 96 FSW is an excellent choice for those who want to sail in ‘light/onshore’ wave conditions or in bump and jump locations where speed and manoeuvrability are the keys to a good session.
Specifications
◄ Swipe ►
DIABLO 76 |
DIABLO 86 |
DIABLO 94 |
DIABLO 104 |
DIABLO 96 FSW |
|
---|---|---|---|---|---|
Technology | Dynamic Wave | Dynamic Wave | Dynamic Wave | Dynamic Wave | Dynamic Wave |
Length | 223 cm | 228 cm | 228 cm | 226 cm | 225 cm |
Width | 56 cm | 58 cm | 59.5 cm | 62 cm | 61 cm |
Volume | 76 L | 86 L | 94 L | 104 L | 96 L |
Bottom Shape | DC/SC Vee | DC/SC Vee | DC/SC Vee | DC/SC Vee | DC Vee |
Footstrap Rows | 2 | 2 | 2 | 2 | 2 |
Fin | FMX Quad Set | FMX Quad Set | FMX Quad Set | FMX Quad Set | FMX Thruster Set |
Finbox | Slot 13 x 5 boxes | Slot 13 x 5 boxes | Slot 13 x 5 boxes | Slot 13 x 5 boxes | US 8” back – Slot 13 side |
Fin Range | 15cm back – 9cm side | 15cm back – 9cm side | 16cm back – 9cm side | 16cm back – 9cm side | 21cm back – 11cm side |
Sail Range | 3.3 – 4.7 m2 | 4.0 – 5.5 m2 | 4.2 – 5.8 m2 | 4.2 – 5.8 m2 | 4.5 – 6.2 m2 |
Weight | 6.2 kg | 6.5 kg | 6.7 kg | 7.0 kg | 6.9 kg |
Notes
• Weight tolerance is +/- 6%
• Hull weight does not include adjustable cutout plates
• Hull weight includes 12 extra single footstrap plugs (8 for straps, 4 for cutouts). This adds 100g so keep this in mind when comparing weights.
