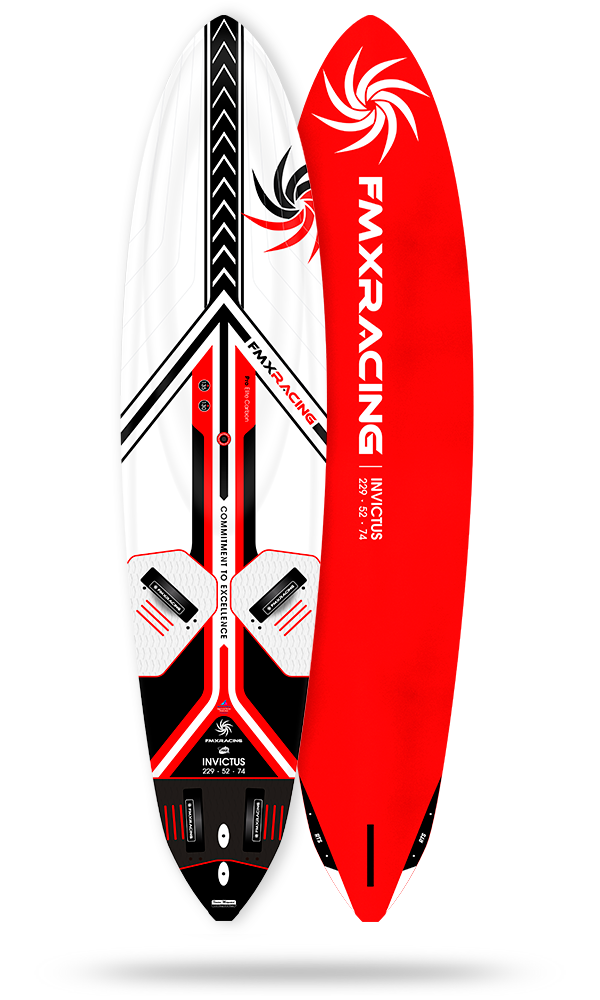

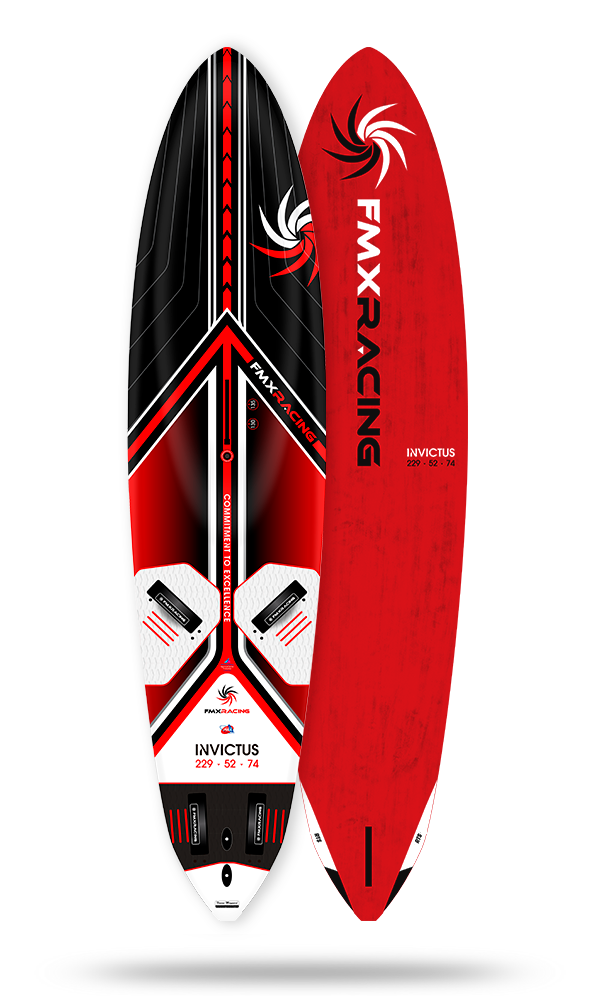

INVICTUS 74

Competition Speed

Blazing fast, with an impressive wind range, this competition speed board has it all.

Based upon the experience gained from multiple speed world records and world titles, the Invictus 74 is ideal for going fast!

INVICTUS 74

Competition Speed

Blazing fast, with an impressive wind range, this competition speed board has it all.

Based upon the experience gained from multiple speed world records and world titles, the Invictus 74 is ideal for going fast!

R&D Result

Early planing off the beach even with a 7.0 sail, however one can also use a 5.2 ultra jacked as the nose stays very steady and consistent on the run.

Dynamic design creates the right rail pressure to ride the fin through the lulls in lower wind speeds and at the same time trims smooth and stable with excellent acceleration when hitting the hardcore stuff.

Features &
Benefits

  Durepox Xtreme ® – America’s Cup grade ultra high-tech bottom paint finish currently used by Team NZ!
  Proven faster release for that extra ‘slip’ = higher speeds.
 Harder and more durable than normal paint finishes.
  A windsurfing industry first. Taking it to the next level!
  Read about it here:   https://reseneauto.co.nz/marine/team-new-zealand-latest/

•  Dedicated speed outline for increased control overpowered and better early planing capabilities for bigger sails when underpowered.

•  Refined dedicated speedsailing scoop-rocker line for explosive acceleration and top-speed.

•  Deep deck concave – Increases downforce and nose trim stability at high speed and lift/fin drive at low speed.

•  Reverse Vee bottom shape – Generous vee and double concave configuration in the nose to clear the chop and create a smooth ride, transitioning to less vee and dc in the tail for reduced drag in the wetted surface area for ultra high speed bursts and acceleration.

•  ‘V4 Vector Cuts’ – Straight lined cutout design that facilitates clean and effortless water release.

•  RTS – Range Trim System – 100% carbon/high-density pvc core removable cutout plates – Significantly increases the range by 20% of all slalom and speed models – With the 74 plates in results in ultra early planing and increased control of the nose trim in overpowered conditions – Plates out and feel the instant burst of acceleration and top speed in the normal wind ranges.

•  Short Tuttle Strong Box – Double the carbon content, double the wall strength and stiffness, and built with a 100% high-density PVC sandwich body. The result – fins stay tight and the box holds the direct feeling performance even after prolonged use.

Summary

Speedsailing was never so easy. Time to blast around your local speed spot!

🏆 3rd place Prince of Speed Leucate 2022

Specifications

◄ Swipe ►

INVICTUS
74
INVICTUS
78
INVICTUS
88
INVICTUS
98
INVICTUS
104
INVICTUS
108
INVICTUS
118
INVICTUS
124
INVICTUS
128
INVICTUS
138
Technology Pro Elite
Carbon
Pro Elite
Carbon
Pro Elite
Carbon
Pro Elite
Carbon
Pro Elite
Carbon
Pro Elite
Carbon
Pro Elite
Carbon
Pro Elite
Carbon
Pro Elite
Carbon
Pro Elite
Carbon
Length 229 cm 233 cm 233 cm 233 cm 233 cm 233 cm 233 cm 228 cm 228 cm 228 cm
Width 52 cm 59 cm 61 cm 63 cm 67 cm 70 cm 72 cm 77 cm 81 cm 85 cm
Volume 74 L 78 L 88 L 98 L 104 L 108 L 118 L 124 L 128 L 138 L
Bottom Shape DC Reverse Vee DC Reverse Vee DC Reverse Vee DC Reverse Vee DC Vee to Inverse Vee DC Vee to Inverse Vee DC Vee to Inverse Vee DC Vee to Inverse Vee DC Vee to Inverse Vee DC Vee to Inverse Vee
Footstrap Rows 2 2 2 2 2 2 2 2 2 2
Fin Not supplied Not supplied Not supplied Not supplied Not supplied Not supplied Not supplied Not supplied Not supplied Not supplied
Finbox Short Tuttle Short Tuttle Short Tuttle Short Tuttle Short Tuttle Short Tuttle Short Tuttle Deep Tuttle Deep Tuttle Deep Tuttle
Fin Range 20-25 cm 28-32 cm 29-33 cm 30-34 cm 32-36 cm 34-38 cm 35-39 cm 37-41 cm 39-44 cm 42-48 cm
Sail Range 4.7 – 7.0 m2 4.5 – 6.5 m2 4.7 – 7.0 m2 5.0 – 7.0 m2 5.8 – 7.8 m2 6.3 – 8.6 m2 7.0 – 8.6 m2 7.0 – 8.6 m2 7.8 – 9.2 m2 7.8 – 9.6 m2
Weight 5.0 kg 5.6 kg 5.8 kg 5.95 kg 6.4 kg 6.6 kg 6.8 kg 6.95 kg 7.3 kg 7.7 kg

Notes

• Weight tolerance is +/- 6%
• Hull weight does not include adjustable cutout plates
• Hull weight includes 12 extra single footstrap plugs (8 for straps, 4 for cutouts). This adds 100g so keep this in mind when comparing weights.
